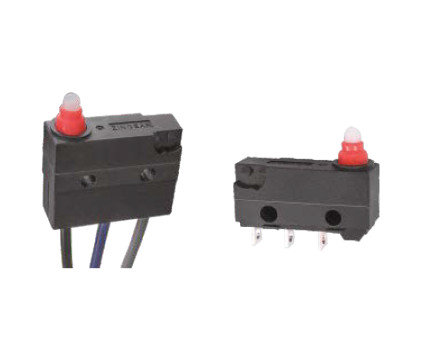

G9A/G9B Series

G9A Dust and Water Proof(IP67) / G9B Dust Proof(IP40)
Small Compact Size Global Safety Approval
Long Life and High Reliability, Variety of Terminals
Variety of Levers Optional, Long Overtravel of 2.20mm Minimum
Widely used in Auto Control, Appliance and Other industry Contral

Applications

Car, Home Appliances, Motor Control

Features

Rating P1 0.1A 125/250VAC 30VDC
Rating 05 5(2)A 125/250VAC 30VDC
Rating 10 ENEC: 10(1.5)A 125/250VAC; UL:10. 1A 1/4HP 125/250VAC
Operating
Freq. Electrical
10-30 times/min
Operating
Freq. Mechanical
120 cycles/min.
Contact Res. (Initiative) 100mΩ Max (It depends on the wire lenght
for the type with wire)
lnsulation Res. (at 500VDC) 100M Ω Min.
Dielectric Strength AC 1000V RMS (50-60Hz)
Storage Temperature -40°C ~ +85°C
Storage Humidity 85% RH Max
E-life 50,000 cycles (Depend on part No.)
M-life 250,000 cycles (IP67) 2,000,000 cycles (IP40)

Certifications
