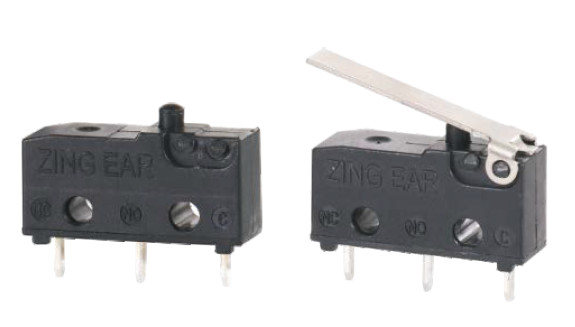

G91 Series

Small Compact Size
Long Life,High Reliability
Variety of Terminals and Levers
Widely used in Auto Control, Appliance and other lndustry ControI



Applications

Car, Phone, Air-Conditioner, Computer, Alarm, Timer, Mixer&Meat Grinder, Fax Machine, Money Sorter, Toy Car

Features



Rating P1 ENEC/UL: 0.1A 125/250V 48VDC Gold Plated Contact
Optional
Rating 05 ENEC: 5A 125/250VAC; UL: 5A 1/8HP, 125/250VAC
Rating 10 ENEC: 10(1.5)A 125/250VAC; UL:10. 1A 1/4HP 125/250VAC
Operating
Freq. Electrical
10-30 times/min
Operating
Freq. Mechanical
120 cycles/min.
Contact Res. (Initiative) 100mΩ Max
lnsulation Res. (at 500VDC) 100M Ω Min.
Dielectric Strength AC 1000V RMS (50-60Hz)
Operating Temperature -40°C ~ +125°C or -40°C ~ +85°C
Storage Humidity 85% RH Max
E-life 10,000 ~ 100,000 cycles (Depend on part No.)
M-life 1,000,000 cycles

Certifications
