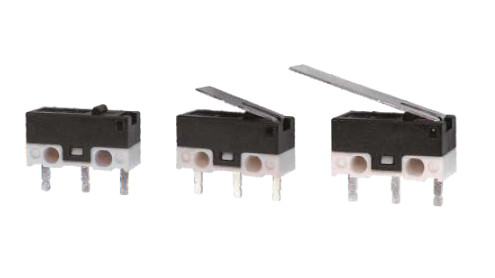

G10A Series

Small Compact Size
Variety of Terminals
Widely used in Appliance and lndustry Control
Long Life and High Reliablity
Variety of Levers Optional

Applications

Walkie Talkie, Telephone, Battery Charger, Mixer & Chopper, Mouse, Calculator, Alarm, Electric Knife, Tester Machine, Home Appliances, Video Cassette Rewinder, Electric Stapler, Electric Pan, Cordless Phone

Features



Rating P1 0.1A 125/250VAC 30VDC
Rating 03 3A 125/250VAC 30VDC
Operating
Freq. Electrical
10-30 times/min
Operating
Freq. Mechanical
120 cycles/min.
Contact Res. (Initiative) 100mΩ Max
lnsulation Res. (at 500VDC) at 500VDC, 100MΩ Min
Dielectric Strength AC 600V RMS (50~60Hz)
Storage Temperature -40°C ~ +85°C
Storage Humidity 85% RH Max
E-life 10,000 cycles
M-life 1,000,000 cycles

Certifications
