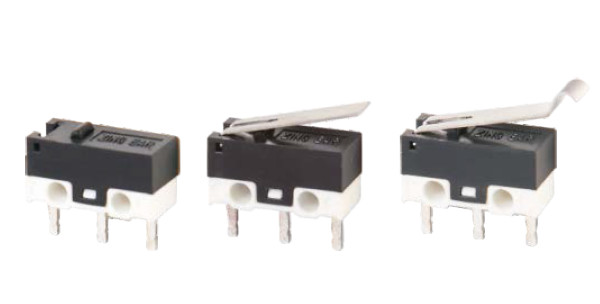

G10 Series

Small Compact Size
Variety of Terminals
Widely used in Appliance and lndustry Control
Long Life and High Reliablity
Variety of Levers Optional

Applications

Walkie Talkie, Telephone, Battery Charger, Mixer & Chopper, Mouse, Calculator, Alarm, Electric Knife, Tester Machine, Home Appliances, Video Cassette Rewinder, Electric Stapler, Electric Pan, Cordless Phone

Features

Rating P1 0.1A 48VDC/125VAC (Gold plated Optional)
Rating 03 1A/3A 125VAC
Operating
Freq. Electrical
10-30 times/min
Operating
Freq. Mechanical
120 cycles/min.
Contact Res. (Initiative) 100mΩ Max (Depends on P/Ns)
lnsulation Res. (at 500VDC) at 500VDC, 100MΩ Min
Dielectric Strength AC 600V RMS (50~60Hz)
Storage Temperature -40°C ~ +85°C
Storage Humidity 85% RH Max
E-life 6,000 ~ 100,000 cycles (Depend on P/Ns)
M-life 1,000,000 cycles (5,000,000 cycles Optional)
Unit Net Weight About 0.5g (Straight PCB type without lever)

Certifications
