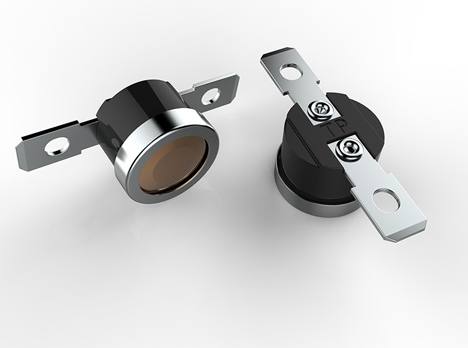

SOD T1/33-S-***B

Single Operation Device

Not reclose unless the ambient temperature drops below -35°C (-31°F) , open on rise (normally closed)
Single pole, single throw (SPST)
One shot action,high reliability, ROHS compliant
Fast response time < 10 sec.., patented

New:
Operating temp. Range: 0- 270℃, 250V/10A/16A, CQC certified

Specifications

Operating temperature range:  0~230℃ (32~446°F)
Auto reset temp. Below -35℃(-31°F)
Temperature tolerance: ±5.0K, ±8.0K, ±10.0K
Contact resistance: 50mΩor less
Electrical Rating:

Electrical rating

Agency approvals

VDE

UL

TÚV

CQC

Life cycles

Remarks

AC125V/10A




1 shot

Ceramic
housing

AC125V/16A




1 shot

AC250V/10A



1 shot

AC250V/16A



1 shot
