Automatic reset, open on rise (normally closed) or close on rise (normally open)
Single pole, single throw (SPST)
Welded construction for integrity of current-carrying components
Cost effective, compact, high reliability, ROHS compliant
The most versatile applications

Features

Operating temperature range:  0~150℃ (32~302°F)
Temperature differentials : 5.5~45 K (difference between nominal off and on temperatures)
Temperature tolerance:  ±3.0K, ±4.0K, ±5.0K, ±6.0K
Contact resistance: 50mΩor less

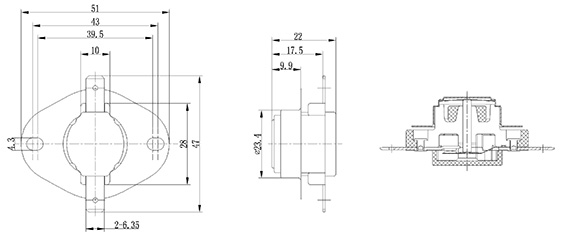

Dim.

Applications

Electrical rating

Agency approvals

Inductive Amperes FLA LRA

VDE

UL

TÚV

CQC

Life cycles

Remarks

AC125V/25A

10 60

 480

100 K

Phenolic housing

AC240V/25A 5 30 480 100 K

AC250V/25A

3.3 -

 ●

100 K
